2 Wheels Pedal Assist Electric Bike , Electric Motor Assisted Bicycle 25-32km / H Speed
Quick Details
1. Motor power: 48V 350W rear brushless motor
2. Lead Acid Gel battery: 48V 12Ah removable battery
3. Tire size: 18”X 2.5
4. Brake system: Disc brake for front wheel
5. Pedals assisted system and Throttle: Yes
6. Max Speed: 32m/h
Product Descriptions
EBS607 is one European standard pedals assist electric bike/scooter. they are welcome by Europe and Australia. We have improved the 48V electric motor and controller system, make them cooperating with optimal status, more powerful and save energy.
PAS and throttle are available for this electric bicycle. More important, the bike's base is narrow, let PAS works comforatble.
48V 12Ah lead acid battery are removable, the weight is just 16kgs, More easier to take out, charge in the room. Our plug can be customerized for different countries, like 3 legs for Europe, 2 legs for America, etc.
Specifications
| Model number | EBS607 |
| Motor | 48V 350W rear brushless motor |
| Battery | 48V 12Ah lead acid gel battery, removable |
| Charge time | 4-8h |
| Charger | 48V 2A, plug can be customized |
| Controller | 48V 17A |
| Speed | 25-32Km/h |
| Speed mode | Single level |
| Driving distance | 40-45km |
| Weight | 65Kgs |
| Packing dimension | 1480x350x860mm |
| Package | 90% completed, one piece per carton |
| Panel/speedometer | Normal display |
| Driving mode | Pedals assisted and Throttle |
| Alarm system | Remote alarm |
| Wheel | 18” |
| Tire | 18”x2.5, CST tire |
| Chain | Normal |
| Frame | Paint with electrophoretic coating |
| Fork | with suspension |
| Shift lever | -- |
| Rear derailleur | -- |
| Front brake | Disc Brake |
| Rear brake | Drum Brake |
| Brake levers | Aluminum |
| Rims | Aluminum alloy |
| Spokes | -- |
| Pedals | Normal |
| Chainwheel | 28T |
| Cranks | steel |
| Freewheel | 16T |
| Handlebar | Steel |
| Stem | -- |
| Grip | 136MM |
| Seat | Lengthen, for two persons |
| Seat tube | -- |
| Headlamp | Normal |
| Fenders | Plastics |
| Wheel base | -- |
| Min ground clearance | -- |
| Saddle ground clearance | -- |
| Handlebar ground clearance | -- |
| Licence requirement | No |

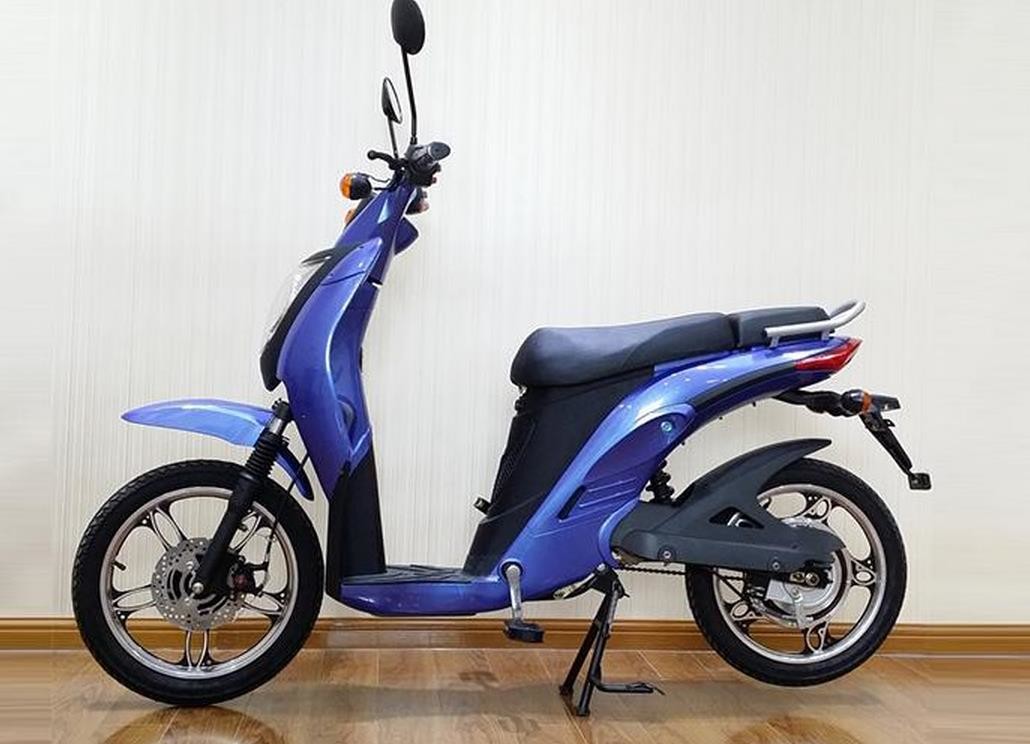

Pictures Show
